BeeVision 182S

Static Dimensioning System for Small Objects

NEXT GENERATION
AI-POWERED DIMENSIONER

Spesifically designed for post-offices, mobile stations and all small spaces to measure small to mid-size objects

plug and measure anything.
even flat objects.

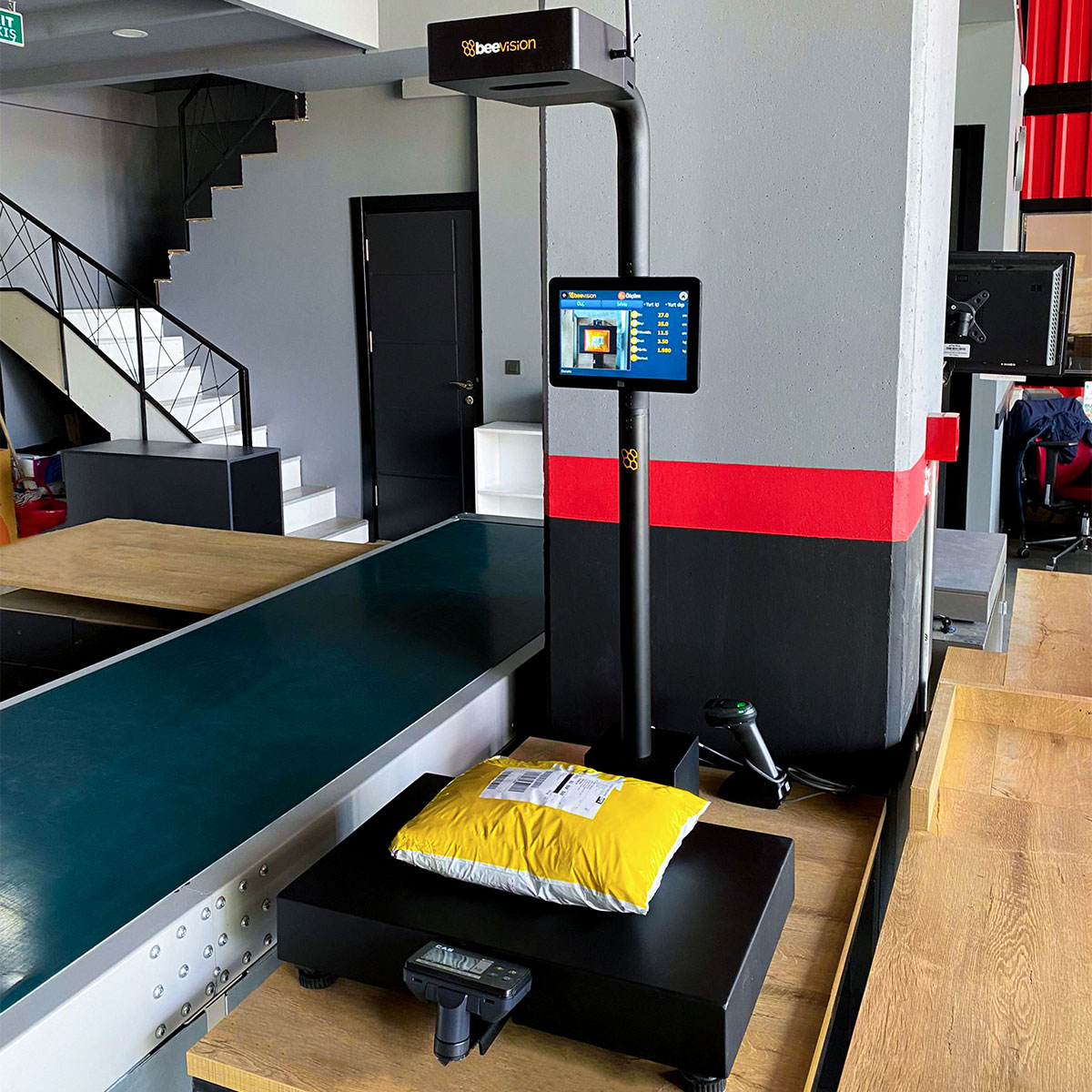

182S is an all-in-one static dimensioning system optimized for measuring small size items. You can also measure flat objects such as envelopes.

3D

AI POWERED

IMAGE PROCESSING

20gr

HIGH ACCURACY

SCALE

5mins

VERY QUICK

DEPLOYMENT

highlights

Your Image

BeeVision 270 Sensor

Measure cubic or irregular shaped
objects in 0.5 sec measurement
time with AI-Powered sensor

Your Image

Touch Screen and Easy UI

Calibrate and operate in seconds
with high-speed responsive industrial
10'' touch-screen monitor

Your Image

Integrated Scale

Easy-to-use, accurate scale.
Legal-for-trade
Weight data sent with API

and more features.

• Easy calibration •
• No external PC or SW required •
• Barcode scanning with handheld scanner •
• Compact design suitable for desktop use •

technical specs

Technology AI-Based 3D Image Processing
Measurable Objects Cubic or Irregular Shaped Objects
Accuracy ±0.5 cm
Integration Interface Web Service API, TCP/IP Socket, File Upload to FTP, SFTP or Samba, RS232
Product Output Width, Length, Height, Weight, Dimensional Weight, Real Volume
Maximum Power Consumption 75W
Operating Temperature 5°C - 40°C
Measurement Area (Platform) (L x W) 40cm x 30cm (Typical)
Minimum Object Dimensions 5cm x 5cm x 2cm
Maximum Object Dimensions 50cm x 40cm x 40cm
Product Dimensions 90cm x 60cm x 125cm
Screen 10.1" Touch Screen
Barcode Scanning Handheld 1D/2D Barcode Scanner
Scale (Configurable) 60kg capacity, 20 gr accuracy
Package Dimensions  Package-1: 103 x 53 x 26 cm and 20 kg
Package-2: 58 x 86 x 21 cm and 19 kg

downloads

brochure

installation manual

user manual

software guide

frequently asked questions

General Questions

Just drop us an email to info@beevision.ai. Please tell us also minimum and maximum object size that you would like to measure, as well as the object type and the application type: static or dynamic.

We ship worldwide!

We accept bank transfer. Our bank account number is provided with offer.

BeeVision dimensioners offer you unprecendented flexibility. You can download measurement results to your PC as an Excel file. You can browse results in Volumizer UI. You can receive results via RS232 or with web-service communication via Ethernet. You do not need to install a single SW, every setting can be changed from your browser.

BeeVision dimensioners are equipped with remote access software. We can connect to your BeeVision and guide you through it.

With BeeVision API! All you need to do is to establish a web service connection to the BeeVision Dimensioner and request data and receive response. You can do this very quickly in any programming language. Our team is happy to provide you examples if you need. BeeVision devices may behave as a client and send results automatically to your database.
BeeVision 182S : Static Dimensioning System for Small Objects

BeeVision 182S is specifically designed for measuring small to mid-size objects, including flat items like envelopes that many dimensioners struggle with. It's perfect for post offices, mobile stations, and compact workspaces where space efficiency and precision for smaller items are essential.

The BeeVision 182S system includes:

> BeeVision 270 Dimensioner sensor
> Compact desktop platform
> 10.1" Industrial touch screen monitor
> High-precision scale (60kg capacity, 20g accuracy)
> Handheld 1D/2D barcode scanner
> All necessary cables and mounting hardware

The BeeVision 182S can measure objects as small as 5cm x 5cm x 2cm, making it ideal for small packages, padded envelopes, and even flat mail items. Its advanced AI-powered image processing enables accurate measurement of items that traditional dimensioners might struggle with.

Yes, the BeeVision 182S is specifically designed for post offices and similar environments where a wide variety of small to medium-sized items need to be measured accurately. Its compact design fits perfectly at service counters, and the high-precision scale (20g accuracy) ensures precise weight measurements for shipping calculations. The system can be deployed in just 5 minutes, making it ideal for both permanent and mobile post office stations.
