BeeVision 272

Static Pallet Dimensioning System

NEW GENERATION
STATIC PALLET DIMENSIONER

An advanced and highly accurate pallet dimensioning system with optional IP camera and scale integration.

Explore in 3D

Interact with BeeVision 272 from every angle using our 3D model.

don't worry about handling the shiny or black foil covered pallets
they can also be measured with ease.

Mount it and start to use it right away.
Seamless integration with warehouse automation software.

2sec
Super Fast
Measurement
±2cm
High Accuracy
Dimensioning
1hr
Very Quick
Deployment

highlights

Your Image

IP Camera

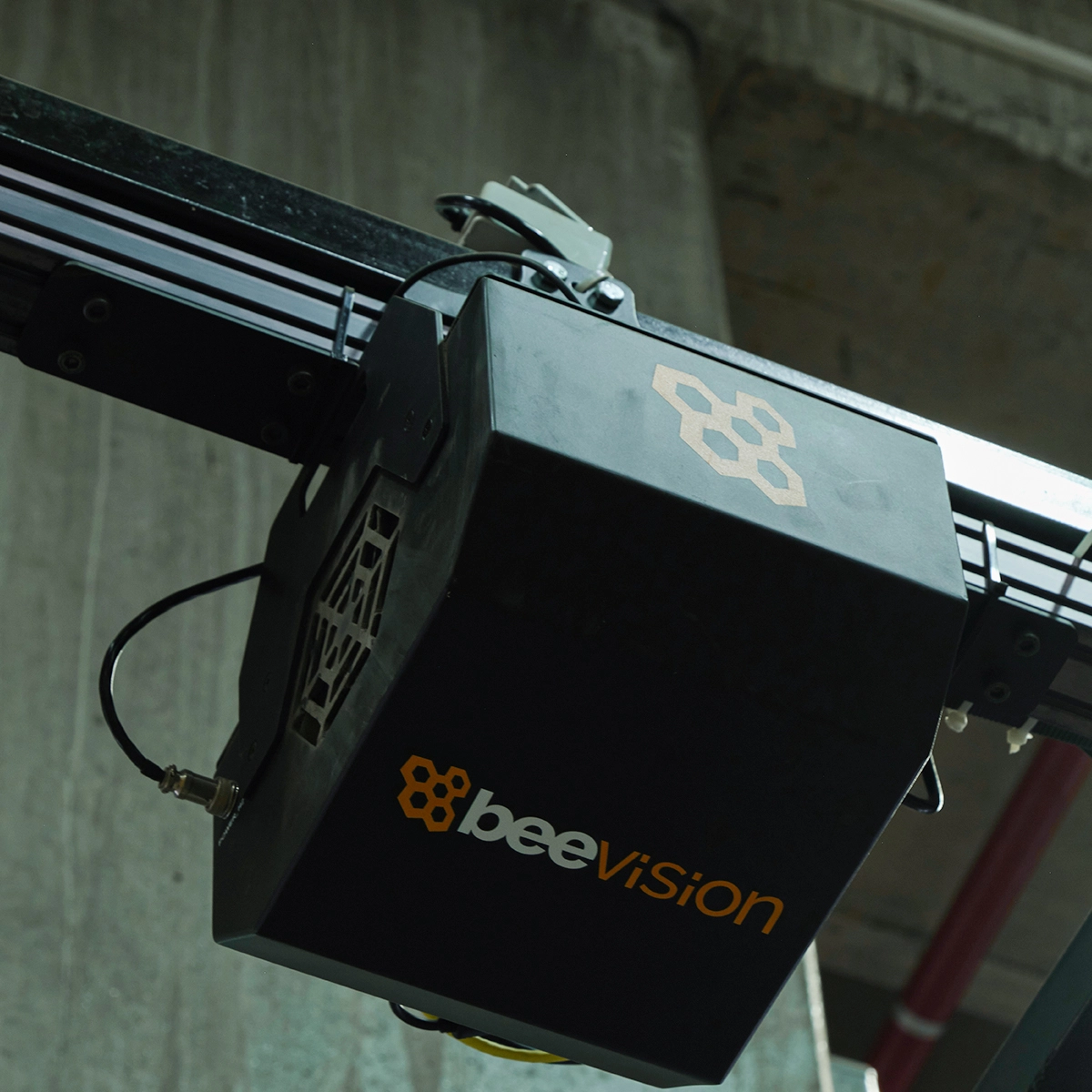

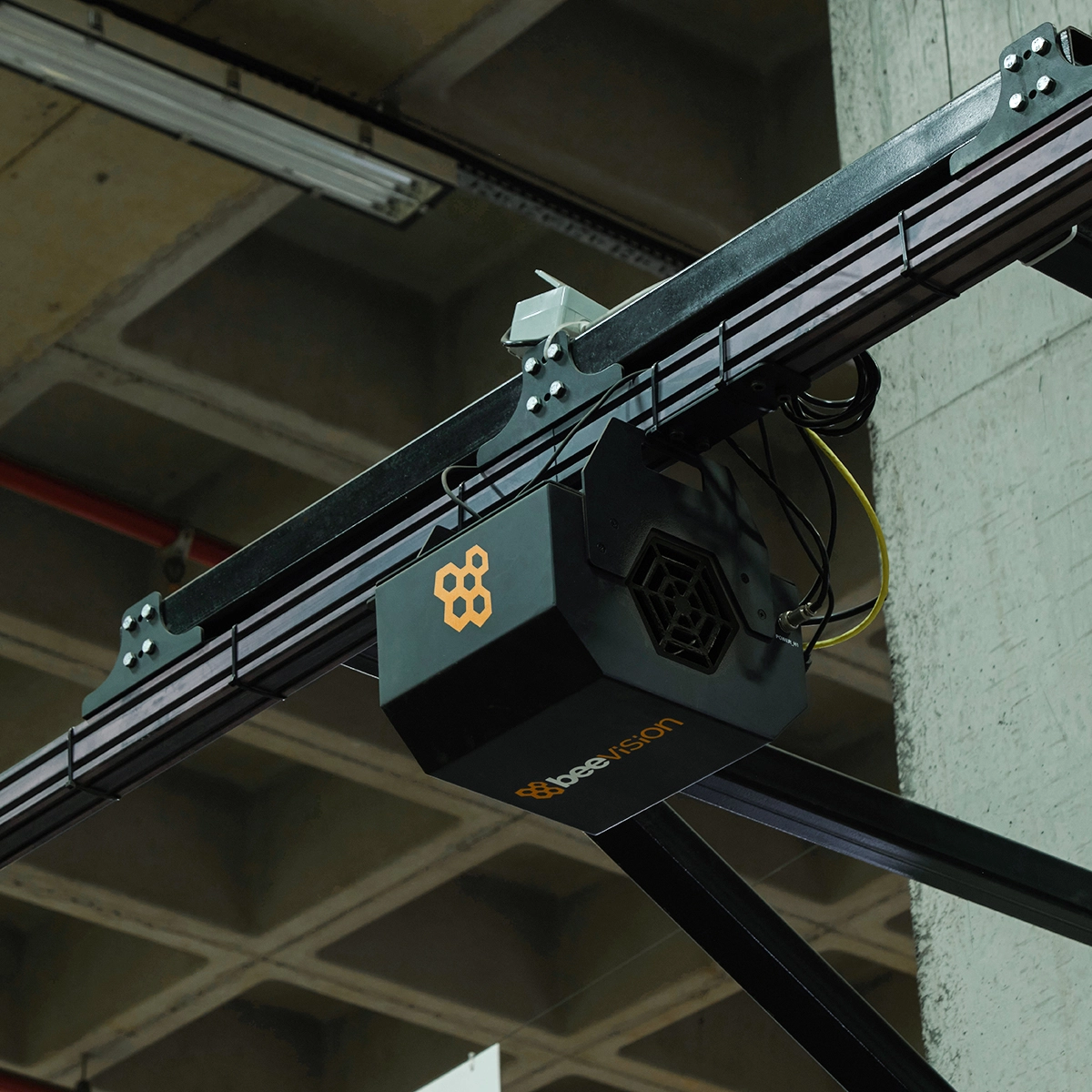

Capture product image from left and right side with embedded cameras. Supports additional IP Cameras for more angles.

Your Image

Touch Screen & Scale Monitoring

Can be connected to any brand of scale with serial cable. UI is available on the screen for easy usage and simple calibration.

Your Image

Powerful Processor

No cloud connection required. The robust processor swiftly handles the data, preparing it for sharing, storage, and synchronization.

and more features.

Self deployable

Install and start using immediately, no complex setup required.

No need for external PC or SW

All processing is handled on-device, no external computer or software needed.

Measure regular and irregular objects

Accurately measures both standard and irregularly shaped pallets.

Extra data: inner-box count, SKU barcode

Capture additional inventory data such as inner-box count and SKU barcodes.

Download results as Excel file

Export measurement results directly as Excel files using the WebUI.

Trigger measurement with scanner, scale or API

Flexible operation: trigger measurements via handheld scanner, scale, or API.

technical specs

Technology AI-Based 3D Image Processing
Measurable Objects Cubic or Irregular Shaped Objects
Accuracy ±0.5 cm
Integration Interface Web Service API, TCP/IP Socket, File Upload to FTP, SFTP or Samba, RS232
Ports Wi-Fi, Ethernet, USB, RS232
Product Output Width, Length, Height, Weight, Dimensional Weight, Real Volume, Barcode, Image
Maximum Power Consumption 75W
Operating Temperature 10°C - 50°C
Housing Aluminum and steel
Product Dimensions 274.5cm x 37.5cm x 40.5cm
Minimum Object Dimensions 30cm x 30cm x 30cm
Maximum Object Dimensions 240cm x 240cm x 240cm
Product Weight 27kg
Total Package Dimensions 124cm x 47cm x 38cm
Total Package Dimensions and Total Weight
(with Ground Mounting Kit)		 Package 1 - 124cm x 47cm x 38cm
Package 2 - 185cm x 105cm x 81cm
( Total Weight - 180kg )

downloads

brochure user manual software guide

frequently asked questions

General Questions

Just drop us an email to info@beevision.ai. Please tell us also minimum and maximum object size that you would like to measure, as well as the object type and the application type: static or dynamic.

We ship worldwide!

We accept bank transfer. Our bank account number is provided with offer.

BeeVision dimensioners offer you unprecendented flexibility. You can download measurement results to your PC as an Excel file. You can browse results in Volumizer UI. You can receive results via RS232 or with web-service communication via Ethernet. You do not need to install a single SW, every setting can be changed from your browser.

BeeVision dimensioners are equipped with remote access software. We can connect to your BeeVision and guide you through it.

With BeeVision API! All you need to do is to establish a web service connection to the BeeVision Dimensioner and request data and receive response. You can do this very quickly in any programming language. Our team is happy to provide you examples if you need. BeeVision devices may behave as a client and send results automatically to your database.

The return on investment (ROI) for BeeVision 272 varies depending on your processing volume, current labor costs, and operational efficiency. Most of our customers achieve full ROI within 6 months. Transitioning from manual pallet dimensioning to our AI-powered static pallet dimensioning system can significantly reduce labor costs, eliminate costs from operational errors, and increase overall productivity. We recommend contacting our sales team for a customized ROI analysis.
BeeVision 272 : Static Pallet Dimensioning System

The BeeVision 272 stands out with its ability to accurately measure pallets with difficult surfaces such as shiny or black foil-covered items that are typically challenging for conventional dimensioners. Using advanced AI-based 3D image processing technology, it delivers highly accurate measurements (±2cm) in just 2 seconds. What's more impressive is its ease of installation - the system can be deployed in as little as 1 hour, offering a true "mount it and use it" experience with no complex setup required. It's designed for seamless integration with existing warehouse automation software.

The BeeVision 272 can measure a wide range of pallet sizes. The minimum object dimensions it can accurately dimension are 30cm x 30cm x 30cm, while its maximum capacity extends to 240cm x 240cm x 240cm (WxLxH). This extensive range makes it suitable for nearly all standard pallet sizes in industrial applications. The system can handle both cubic and irregularly shaped objects, providing accurate measurements regardless of the pallet configuration or content arrangement.

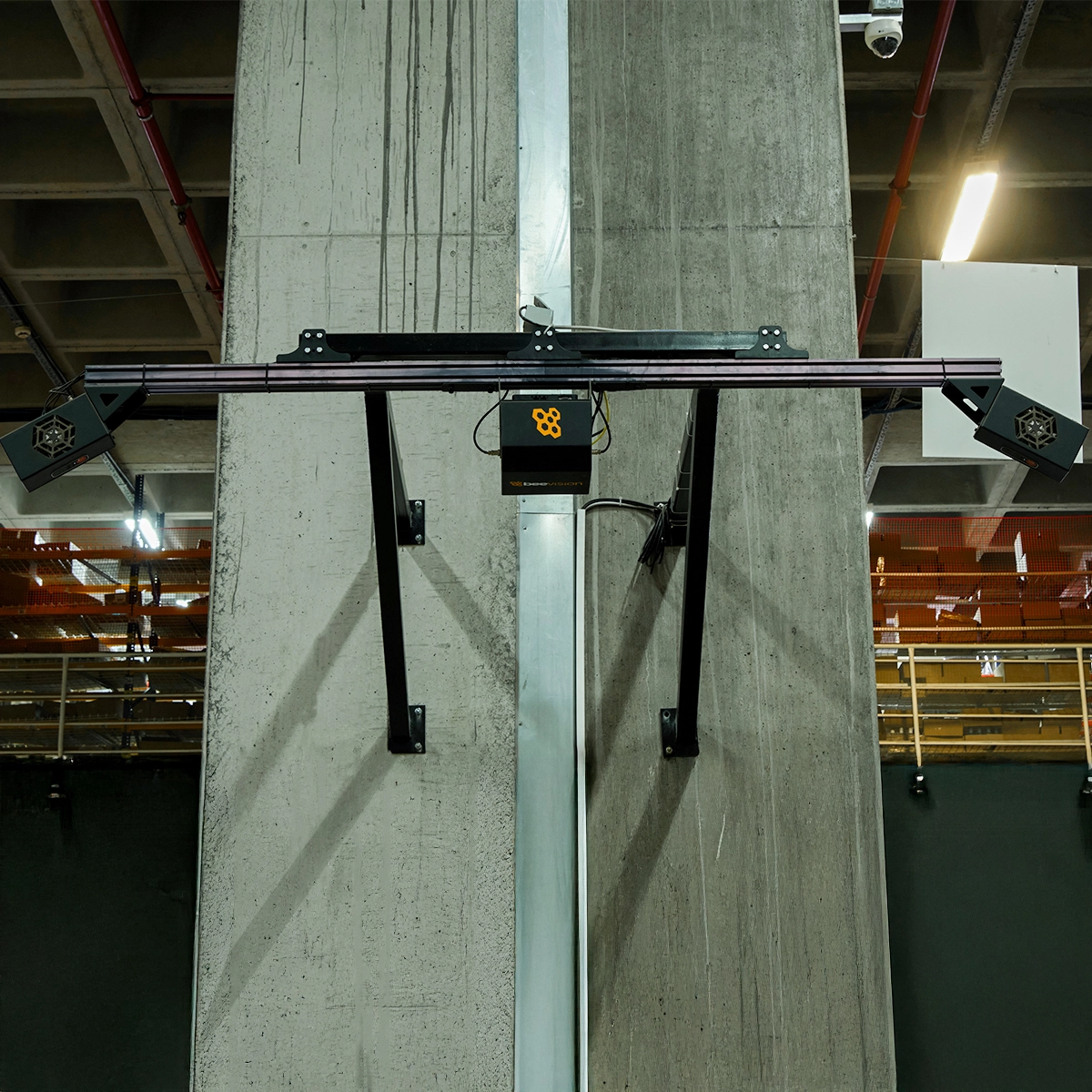

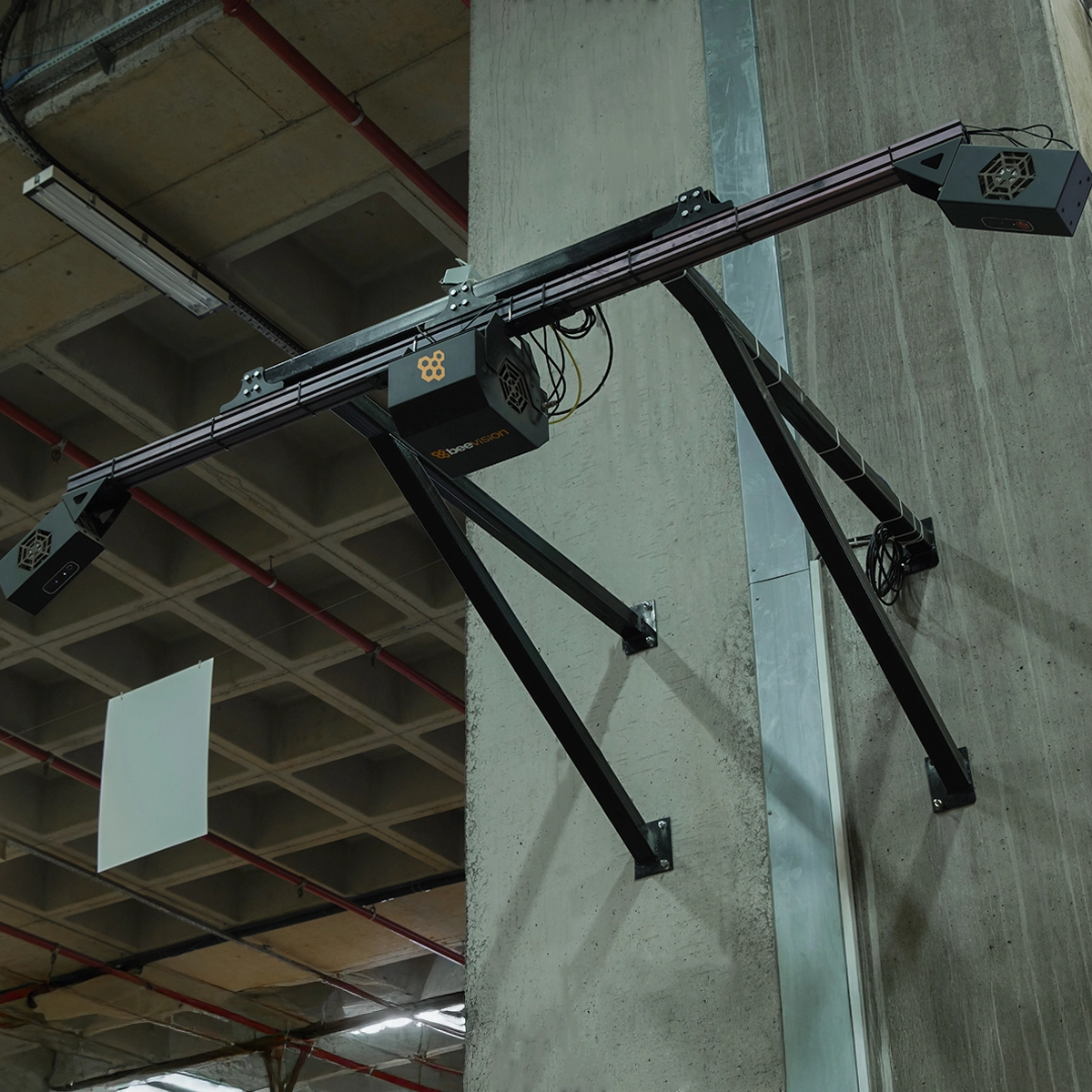

The BeeVision 272 comes equipped with embedded cameras that capture product images from both the left and right sides, providing comprehensive visual data of the measured pallets. Additionally, the system supports integration with external IP cameras for capturing images from additional angles, giving you complete visual coverage of your pallets. These images are stored alongside the dimensional data, providing a complete record of each pallet processed. This visual documentation can be particularly valuable for quality control, customer verification, and dispute resolution.

The BeeVision 272 features a powerful built-in processor that handles all data processing locally, with no cloud connection required. This ensures data security and eliminates potential connectivity issues. The system comes with a touch screen interface for easy operation and monitoring, offering direct access to measurement results. You can download results as Excel files using the web UI or integrate the data directly into your warehouse management systems through multiple integration interfaces: Web Service API, TCP/IP Socket, File Upload to FTP, SFTP or Samba, and RS232. The system also supports scale integration, allowing weight data to be combined with dimensional measurements.

Beyond its core dimensioning capabilities, the BeeVision 272 offers several advanced features. It can capture additional data such as inner-box count and SKU barcodes, providing more comprehensive inventory information. Measurements can be triggered through multiple methods: via a handheld scanner, scale, or API calls, offering flexible operation options. The system is self-deployable, requiring no external PC or software installation, making it an ideal stand-alone solution. It provides both bounding box dimensions and real volume calculations, particularly valuable for irregularly shaped items. The system is built with an aluminum and steel housing to ensure durability in warehouse environments.

Yes, the BeeVision software supports group measurement and cubic measurement operations. The Group Measurement function is designed to group sequential dimensioning tasks and send the dimensioning results to a specified network address via the Integration Menu > Server Sharing tab. Additionally, volume measurement data is saved locally on the device as an XML file (readable by Microsoft Excel), facilitating warehouse automation processes.

Yes, by enabling the "Enter results manually" option in the Measurement Settings menu of the BeeVision dimensioning device, you can register products of any size. This feature ensures accurate dimensioning and flexible data entry.

Yes, any scale supporting RS232 communication can be used with the BeeVision dimensioning device. However, for accurate volume measurement and optimal performance, we recommend using scales specified by BeeVision. For further details, please contact our Technical Support Team.

Yes, the BeeVision dimensioning device is compatible with barcode scanners that support USB port connections, enhancing the flexibility of your warehouse automation processes.

No, the BeeVision dimensioning device retains unsent volume measurement data in its memory and periodically attempts to send it to the remote server. This process continues until a successful response is received, ensuring accurate dimensioning and data security.

BeeVision 272 Pallet Dimensioner: Advanced Static Pallet Measurement System

BeeVision 272 Pallet Dimensioner is an advanced, high-accuracy static pallet dimensioning solution designed for industrial warehousing, distribution, and logistics environments where reliable pallet measurement is essential. As a new-generation static pallet dimensioner, it delivers fast, precise, and fully automated measurements without the need for external computers or complex setup — just install and start using it immediately.

Powered by AI-based 3D image processing, BeeVision 272 accurately determines the dimensions of both regular and irregular shaped pallets — including challenging surfaces like shiny or black foil-covered pallets that conventional systems struggle to measure. Measurements are completed in approximately 2 seconds with high precision (± 0.5 cm), ensuring reliable data for logistics, storage planning, and billing processes.

BeeVision 272 supports a wide range of pallet sizes, from minimum 30 × 30 × 30 cm to maximum 240 × 240 × 240 cm, making it suitable for nearly all standard pallet formats in industrial settings. The system captures comprehensive dataset outputs — including width, length, height, weight, dimensional weight, real volume, barcode data, and images — enabling downstream systems to operate with full visibility.

Equipped with embedded left and right IP cameras, the system provides rich visual documentation of each pallet. Additional external camera support is available for extra angles if needed. Measurement triggering is flexible and can be initiated by handheld scanner, scale, or API calls, fitting easily into existing workflows.

BeeVision 272's intuitive touch screen user interface enables easy calibration and real-time monitoring, while integration interfaces such as Web Service API, TCP/IP Socket, FTP/SFTP/Samba, and RS232 ensure seamless connectivity with Warehouse Management Systems (WMS) and enterprise software. Export options also include direct Excel file output via the web UI.

Compared to manual pallet measurement methods, BeeVision 272 reduces labor costs, eliminates human error, and significantly improves throughput and data accuracy. Many operations see strong return on investment (ROI) within months thanks to faster, automated measurement and better dimensional data quality.

BeeVision 272 Pallet Dimensioner is a robust, easy-to-deploy static pallet measurement system that brings speed, accuracy, and automation to modern warehousing and logistics processes.
