BeeSort Sorting Solution

BeeSort is a fast, modular and affordable parcel sorting system.




BeeSort does not just sort your items but also analyzes them to provide you tangible suggesstions such as optimum vehicle size



Re-program your chutes real time and upgrade your system with more chutes whenever you need



Employed with BeeVision 190 Dimensioner, BeeVision 200 barcode readers and BeeHive intelligence platform, BeeSort provides unprecedented harmony of software and hardware

How BeeSort works

About BeeSort

BeeSort Sorting System

OK  BeeSort can sort up-to 5000 envelopes, polybags, parcels per hour

OK  BeeSort consists of modular parts: Feed section + DWS section + Sorting section + Optional Return section

OK  Design the sorting section with as many sorting modules as you need

OK  Empowered by BeeVision 190 DWS and BeeVision 200 barcode readers

OK  Integrated with BeeHive Intelligence platform to ensure max efficiency of your vehicle fleet and personnel

OK  Track no-reads with BeeHive to improve sorting with time

OK  Share images with your customers through BeeHive link sharing

OK  Read labels of packages and prevent wrong addresses

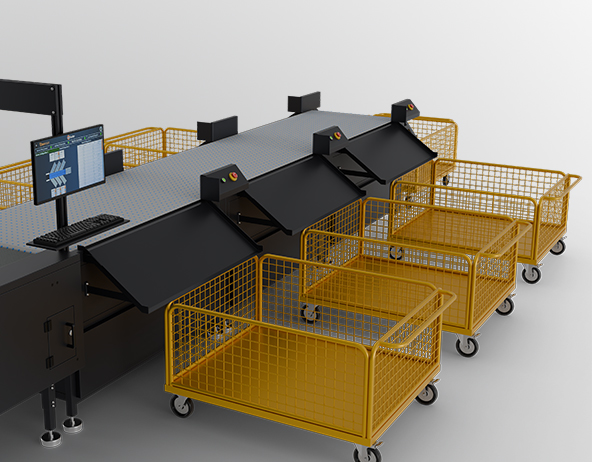

BeeSort Bag Sorting Solution


BeeSort Sorting Solution

OK  Dynamic programmable sorting functions: change chute addressing real-time via powerful SW

OK  Upgrade your BeeSort with more sorting modules as your business grows

OK  Automate your in-warehouse operations with BeeSort to reduce the costs to minimum

Sorting Technology Roll-on (Multi-Directional Roller Belt) Sorter
Conveyable Objects Polybags, envelopes, parcels, totes
Throughput 5000 pieces per hour
Integration Interface JSON Web Service API
Analyze Software BeeHive Intelligence Platform
Induction Method Automatic Merging and Positioning
Induction Stations Single or Multiple
Chute Stations Gravity rollers or motorized rollers or simple stainless steel lines
Layout Linear or Loop
Weight Capacity 0-60kg
DWS BeeVision 190 Dimensioning, Weighing, Barcode Reading and Image Capture System
Operating Temperature -10℃ - 40℃
Minimum Object Dimensions 5cm x 5cm x 5cm
Maximum Object Dimensions 60cm x 60cm x 60cm
General Questions

Just drop us an email to info@beevision.ai . Please tell us also minimum and maximum object size that you would like to measure, as well as the object type and the application type: static or dynamic.

We accept bank transfer. Our bank account number is provided with offer.

BeeVision dimensioners offer you unprecendented flexibility. You can download measurement results to your PC as an Excel file. You can browse results in Volumizer UI. You can receive results via RS232 or with web-service communication via Ethernet. You do not need to install a single SW, every setting can be changed from your browser.

BeeVision dimensioners are equipped with remote access software. We can connect to your BeeVision and guide you through it.

With BeeVision API! All you need to do is to establish a web service connection to the BeeVision Dimensioner and request data and receive response. You can do this very quickly in any programming language. Our team is happy to provide you examples if you need. BeeVision devices may behave as a client and send results automatically to your database.

BeeVision 170 : The Dimensioner
Here is what is delivered in the box with your BeeVision 170 dimensioners:

> BeeVision Dimensioner
> Power Adapter
> Connection Bracket
You can mount it anywhere you like and calibrate the device within couple of seconds. Easiest dimensioner ever!
In 99% of the cases, single dimensioner is sufficient. An object with a reverse T shape might require two dimensioners to cover blind spots. If you would like to measure pallet size in addition to freight size, we suggest double BeeVision 170s. For further information, please refer to User Manual in Downloads page.

Delivery time can vary depending on the number of the products you purchase. For a single unit BeeVision 170, it is generally 3 days.

Mounting BeeVision is quite easy. There are 4 screw holes to mount it. We also provide a simple connection bracket that can be used to mount BeeVision dimensioners to industry standard sigma shape profiles.

Thanks to our patented 3D measurement technology, calibration is as simple as it can get. There is no need for other equipment or even a checker board. All you need to do is to first mount the device looking downwards to the measurement surface, connect it to a monitor or use your browser to control the device and then follow single click calibration method described in the User Manual. Go to Downloads page for further details.

Just once! You do not need to recalibrate unless you change the position of the BeeVision dimensioner.

YES! BeeVision dimensioners are designed to work together with scales. You can use RS232 connection to feed weight data from scale to dimensioner. There are bunch of features to fine-tune cooperation between scale and BeeVision.

Yes. BeeVision can directly print measurement-specific barcodes or labels if you connect a Zebra brand barcode printer via USB. For other barcode printers, please get in touch with us.

No, you can use BeeVision's web interface to calibrate or perform measurements, even remotely. If you would like to use a monitor, you can connect to HDMI output of BeeVision and you can control the device so as well.

Yes, just plug the USB cable of the scanner to the BeeVision and you are good to go. You can set a delay between barcode scan event and dimension measurement to provide the operator time for better handling.

BeeVision 170P is optimized for measuring large objects such as pallets. On the other hand, BeeVision 170B is designed for measuring mid-size parcels. Other than measurement range, there is no difference between the products.

BeeVision static dimensioners support multiple triggering options: manual, automatic, handheld scanner, scale and through API. With manual scanning, the user needs to press the "Measure" button. In automatic triggering mode, every object in the measurement area is automatically measured. With barcode scanner triggering, the user scans a barcode and a measurement is triggered. With scale triggering mode, whenever an object is placed on the connected scale, a measurement is triggered.
