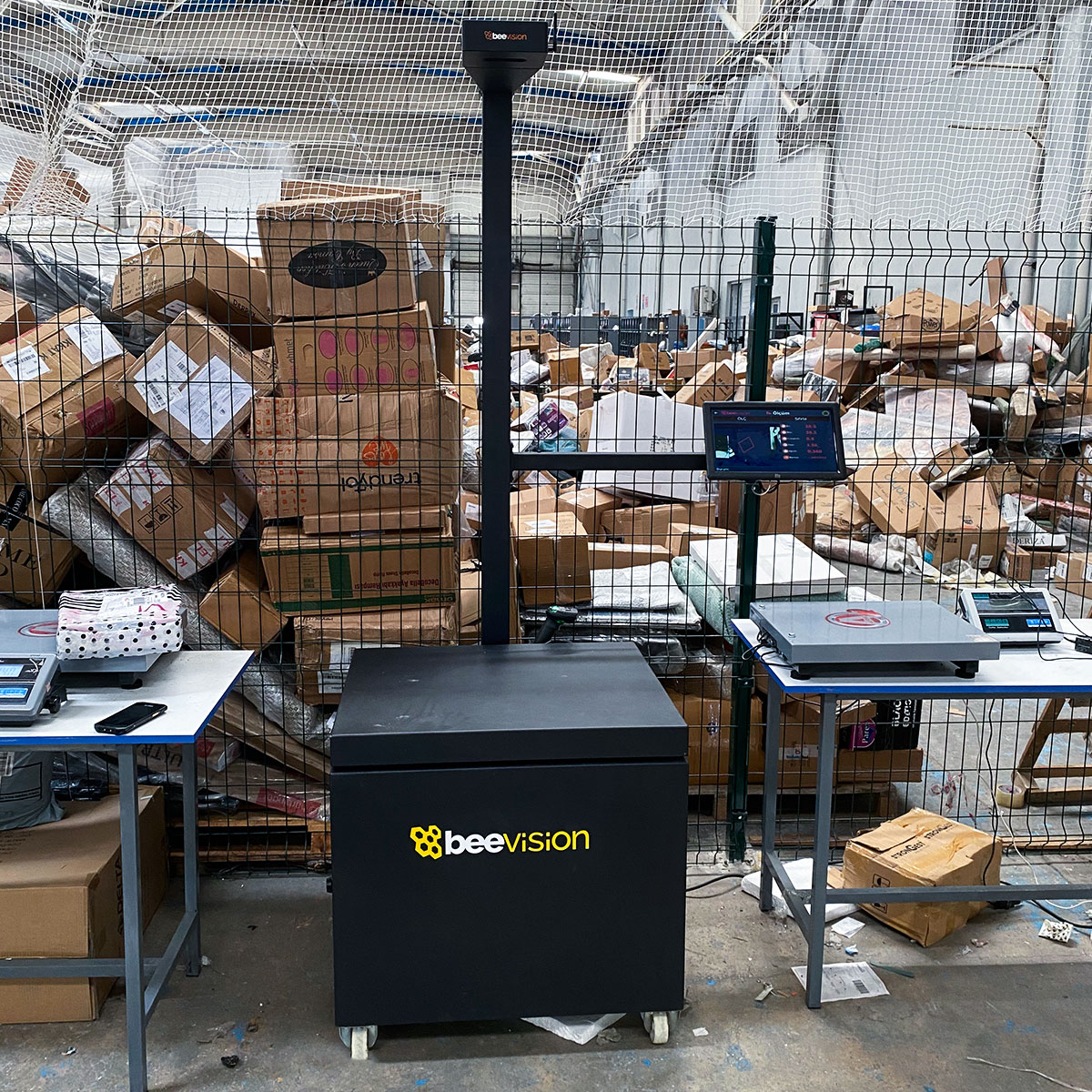

BeeVision 180

Static Dimensioning System for Parcels

SPECIFICALLY DESIGNED
 FOR WAREHOUSES

Legal-for-trade with MID & OIML approvals

meet the easiest
static dimensioner.

Very quick, easy to use and accurate.
Set it up in 5 minutes and start measuring smoothly.

8hr
Optional Battery Life
0.5cm
High Accuracy Dimensioning
10mins
Very Quick Deployment

highlights

BeeVision 270 Sensor

BeeVision 270 Sensor

Measure cubic or irregular shaped objects in 0.5sec measurement time with AI-Powered sensor

Touch Screen and Easy UI

Touch Screen and Easy UI

Calibrate and operate in seconds with high-speed responsive industrial 10'' touch-screen monitor

Integrated Scale

Integrated Scale

Accurate measurements in a few seconds, even in the most sensitive operations with integrated scale

and more features

Remote access to device

Access and control your BeeVision 180 remotely for seamless monitoring and configuration from anywhere.

Real volume measurement

Accurate real volume calculation for irregular shaped objects with AI-powered 3D imaging technology.

Capture images of packages

High-quality image capture for each measurement with automatic storage and retrieval capabilities.

Optional barcode/label printer

Integrated barcode scanning and optional label printing for complete package identification and tracking.

Extra data collection

Collect additional data such as inner-box count, SKU barcode, and custom fields for comprehensive tracking.

Excel export via WebUI

Download measurement results as Excel files directly through the intuitive web user interface.

components

BeeVision 270 Sensor BeeVision 270 Sensor
Touch Screen Monitor 10.1" Touch Screen Monitor
Integrated Scale Integrated Scale
Barcode Scanner Handheld Barcode Scanner

technical specs

Technology AI-Based 3D Image Processing
Measurable Objects Cubic or Irregular Shaped Objects
Accuracy ±0.5 cm
Integration Interface Web Service API, TCP/IP Socket, File Upload to FTP, SFTP or Samba, RS232
Ports Wi-Fi, Ethernet, USB, RS232
Product Output Width, Length, Height, Weight, Dimensional Weight, Real Volume, Barcode, Image
Maximum Power Consumption 60W
Material Aluminum, iron and wood
Measurement Area (Platform) (L x W) 70cm x 80cm (Typical)
Minimum Object Dimensions 5cm x 5cm x 5cm
Maximum Object Dimensions 80cm x 60cm x 60cm
Product Dimensions 70cm x 100cm x 240cm
Screen 10.1" Touch Screen
Barcode Scanning Handheld 1D/2D Barcode Scanner
Scale (Configurable) 60kg capacity, 20 gr accuracy
Total Package Weight 230kg
Package Dimensions  120cm x 90cm x 115cm

downloads

frequently asked questions

General Questions

Just drop us an email to info@beevision.ai. Please tell us also minimum and maximum object size that you would like to measure, as well as the object type and the application type: static or dynamic.

BeeVision dimensioners come with a standard 1-year warranty covering manufacturing defects. Extended warranty options are available upon request.

We ship worldwide!

We accept bank transfer. Our bank account number is provided with offer.

BeeVision dimensioners offer you unprecendented flexibility. You can download measurement results to your PC as an Excel file. You can browse results in Volumizer UI. You can receive results via RS232 or with web-service communication via Ethernet. You do not need to install a single SW, every setting can be changed from your browser.

BeeVision dimensioners are equipped with remote access software. We can connect to your BeeVision and guide you through it.

With BeeVision API! All you need to do is to establish a web service connection to the BeeVision Dimensioner and request data and receive response. You can do this very quickly in any programming language. Our team is happy to provide you examples if you need. BeeVision devices may behave as a client and send results automatically to your database.

The return on investment (ROI) for BeeVision 180 varies depending on your processing volume, current labor costs, and operational efficiency. Most of our customers achieve full ROI within 6 months. Transitioning from manual dimensioning to automated dimensioning can significantly reduce labor costs, eliminate costs from operational errors, and increase overall productivity. We recommend contacting our sales team for a customized ROI analysis.
BeeVision 180 : Static Dimensioning System

Here is what is delivered with your BeeVision 180 dimensioners:

> BeeVision 270 Dimensioner
> Mobile platform on wheels
> Industrial 12" touch screen monitor
> Integrated scale
> Handheld barcode scanner

The platform of BeeVision 180 is produced on-demand. It generally takes 3 weeks after the purchase order until the product is shipped.

Yes, absolutely! All you have to do is to mount the pole and you are good to go!

Yes, BeeVision 180 captures images and also stores them. You can view previous measurements' images from your browser or from the monitor of the system. The image quality is good enough to determine if the right object is measured but the text on the shipment label may not be clear. Thus, it is not advised to run OCR or other similar applications on the image.

Yes, the BeeVision software supports group measurement and cubic measurement operations. The Group Measurement function is designed to group sequential dimensioning tasks and send the dimensioning results to a specified network address via the Integration Menu > Server Sharing tab. Additionally, volume measurement data is saved locally on the device as an XML file (readable by Microsoft Excel), facilitating warehouse automation processes.

Yes, by enabling the "Enter results manually" option in the Measurement Settings menu of the BeeVision dimensioning device, you can register products of any size. This feature ensures accurate dimensioning and flexible data entry.

Yes, any scale supporting RS232 communication can be used with the BeeVision dimensioning device. However, for accurate volume measurement and optimal performance, we recommend using scales specified by BeeVision. For further details, please contact our Technical Support Team.

Yes, the BeeVision dimensioning device is compatible with barcode scanners that support USB port connections, enhancing the flexibility of your warehouse automation processes.

Yes, you can access past dimensioning results through the WebUI on the BeeVision dimensioning device. Additionally, all volume measurement data can be retrieved via WebService. For detailed instructions to support warehouse automation, please refer to our documentation.

No, the BeeVision dimensioning device retains unsent volume measurement data in its memory and periodically attempts to send it to the remote server. This process continues until a successful response is received, ensuring accurate dimensioning and data security.
