BeeVision 270 Dimensioner

Only OIML & MID certified dimensioner for irregular objects!


About BeeVision 270

BeeVision Parcel Dimensioner

OK  First and only static dimensioner that is OIML & MID certifed (legal-for-trade) for irregular-shaped objects

OK  A plug&measure, affordable dimensioner

OK  To be integrated in your product or deployed by you

OK  Measurement of static objects in any orientation and position

OK  No external PC or SW required

OK  Easy integration with scales, printers, scanners, IP-cameras


OK  Measure all objects: cubic or irregular shaped

OK  Low-cost thanks to novel 3D imaging technology

OK  Advanced API and data transmission over Ethernet, WiFi, RS232

OK  Super Fast: 0.1 sec measurement time

OK  Get real volume in addition to bounding box volume (dim weight)

OK  Detection of undesired objects in the measurement area

Technology AI-Powered 3D Image Processing
Measurable Objects Cubic or Irregular Objects
Max Dimensions (W x L x H) 80cm x 60cm x 60cm
Min Dimensions (W x L x H) 5cm x 5cm x 5cm
Accuracy ±0,5 cm
Integration Interface Web Service or Excel-readable (XML) File Output over Ethernet or Wi-Fi, RS232
Ports Ethernet, USB, RS232, HDMI
Product Output Width, Length, Height, Weight, Dimensional Weight, Real Volume
Operating Voltage 12 V (100-240V when using provided adapter)
Average Current 2 A
Operating Temperature 5°C – 40°C
Housing Aluminium
Product Dimensions 195mm x 165mm x 67mm
Product Weight 2.0 kg
Package Dimensions 350mm x 350mm x 170mm
Package Weight 2.5 kg
General Questions

Just drop us an email to info@beevision.ai . Please tell us also minimum and maximum object size that you would like to measure, as well as the object type and the application type: static or dynamic.

We accept bank transfer. Our bank account number is provided with offer.

BeeVision dimensioners offer you unprecendented flexibility. You can download measurement results to your PC as an Excel file. You can browse results in Volumizer UI. You can receive results via RS232 or with web-service communication via Ethernet. You do not need to install a single SW, every setting can be changed from your browser.

BeeVision dimensioners are equipped with remote access software. We can connect to your BeeVision and guide you through it.

With BeeVision API! All you need to do is to establish a web service connection to the BeeVision Dimensioner and request data and receive response. You can do this very quickly in any programming language. Our team is happy to provide you examples if you need. BeeVision devices may behave as a client and send results automatically to your database.

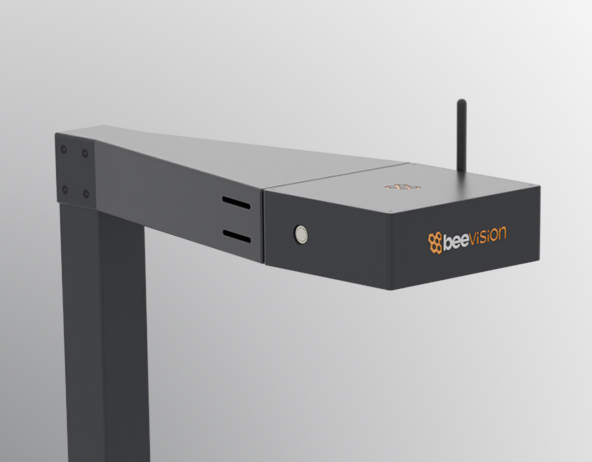

BeeVision 270 : The Dimensioner
Here is what is delivered in the box with your BeeVision 270 dimensioners:

> BeeVision Dimensioner
> Power Adapter
> Connection Bracket
You can mount it anywhere you like and calibrate the device within couple of seconds. Easiest dimensioner ever!
In 99% of the cases, single dimensioner is sufficient. An object with a reverse T shape might require two dimensioners to cover blind spots. If you would like to measure pallet size in addition to freight size, we suggest double BeeVision 270s. For further information, please refer to User Manual in Downloads page.

Delivery time can vary depending on the number of the products you purchase. For a single unit BeeVision 270, it is generally 3 days.

Mounting BeeVision is quite easy. There are 4 screw holes to mount it. We also provide a simple connection bracket that can be used to mount BeeVision dimensioners to industry standard sigma shape profiles.

Thanks to our patented 3D measurement technology, calibration is as simple as it can get. There is no need for other equipment or even a checker board. All you need to do is to first mount the device looking downwards to the measurement surface, connect it to a monitor or use your browser to control the device and then follow single click calibration method described in the User Manual. Go to Downloads page for further details.

Just once! You do not need to recalibrate unless you change the position of the BeeVision dimensioner.

YES! BeeVision dimensioners are designed to work together with scales. You can use RS232 connection to feed weight data from scale to dimensioner. There are bunch of features to fine-tune cooperation between scale and BeeVision.

Yes. BeeVision can directly print measurement-specific barcodes or labels if you connect a Zebra brand barcode printer via USB. For other barcode printers, please get in touch with us.

No, you can use BeeVision's web interface to calibrate or perform measurements, even remotely. If you would like to use a monitor, you can connect to HDMI output of BeeVision and you can control the device so as well.

Yes, just plug the USB cable of the scanner to the BeeVision and you are good to go. You can set a delay between barcode scan event and dimension measurement to provide the operator time for better handling.

BeeVision 272 is optimized for measuring large objects such as pallets. On the other hand, BeeVision 270 is designed for measuring mid-size parcels.

BeeVision static dimensioners support multiple triggering options: manual, automatic, handheld scanner, scale and through API. With manual scanning, the user needs to press the "Measure" button. In automatic triggering mode, every object in the measurement area is automatically measured. With barcode scanner triggering, the user scans a barcode and a measurement is triggered. With scale triggering mode, whenever an object is placed on the connected scale, a measurement is triggered.
