Increase your profit
UP TO 40%

by innovative and affordable dimensioning

Watch Dimensioner Video Watch Video
BeeVision Dimensioner Image

BeeVision Dimensioner

Next generation ultra low cost dimensioner

Measure your static parcels with any shape on any surface with at most 1 cm accuracy.

Capture their photo.

Automatically save cubing info in your server and reclaim your profit!

Ultra fast dimensioning

Ultra Fast:
Dim in 0.05 seconds

Dimensioner integration

Integration with API

Master Data Collector

Master data of SKUs

Measure parcels on a conveyor with 1 cm accuracy even if they are irregular shaped.

Read their barcodes.

Prevent any damage claim with captured photos.

Dimensioner calibration

Patented Single-Click

Dimensioner Control

Access from any
device with Web UI

Dimensioning Icon


Low cost cubing system Icon


3D Volume Measurement Icon


Barcode Reader Icon


Integrated Image Capture


Scale Integration Icon


World Class Products.

Trusted Globally.

Total Measurement


General Questions

Just drop us an email to . Please tell us also minimum and maximum object size that you would like to measure, as well as the object type and the application type: static or dynamic.

Delivery time can vary depending on the model and number of the products you purchase. For single unit 3DT170, it is generally one week. For 3DT190 dynamic system, it is generally 8 weeks.

We accept bank transfer. Our bank account number is provided with offer.

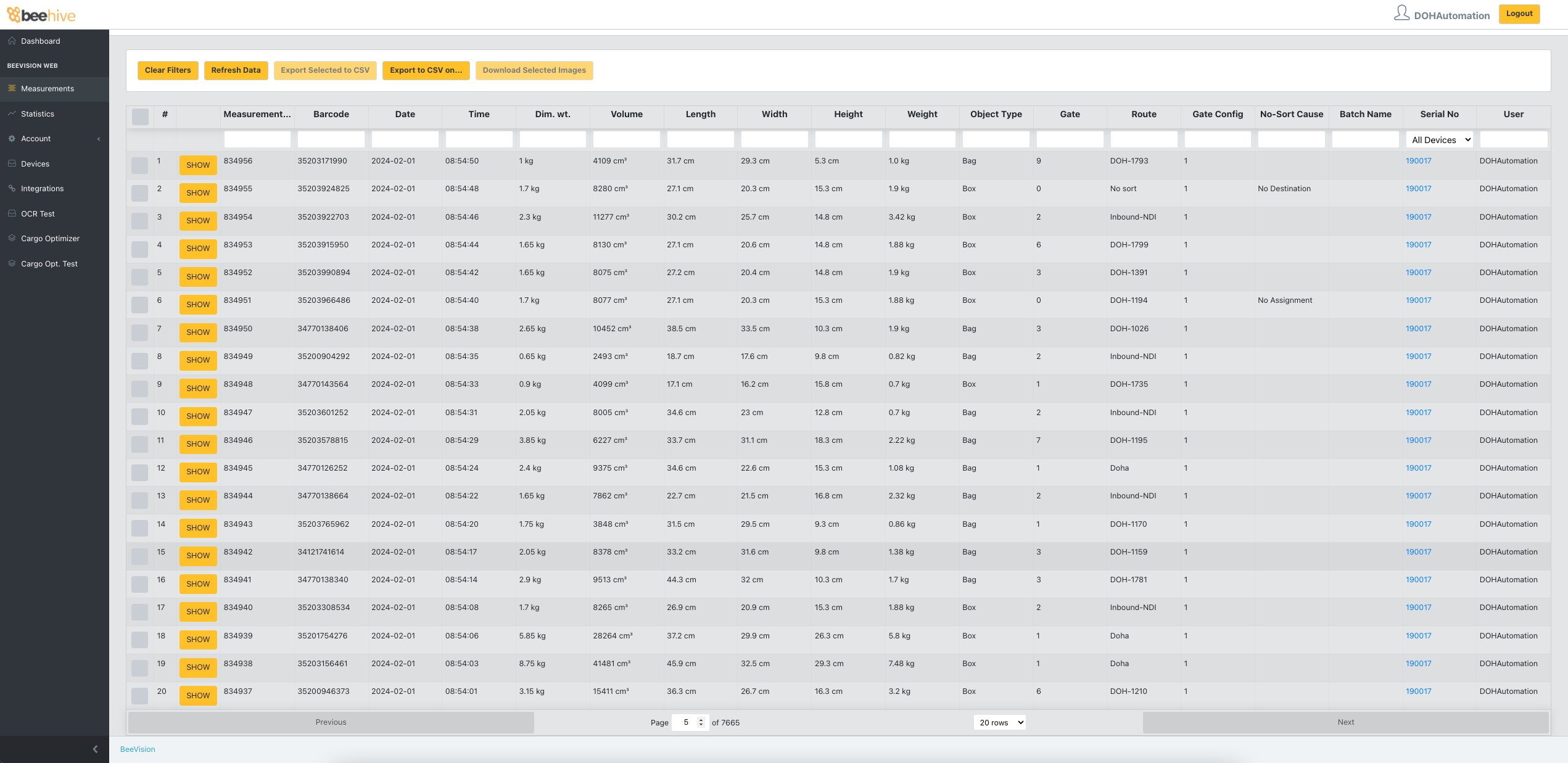

BeeVision dimensioners offer you unprecendented flexibility. You can download measurement results to your PC as an Excel file. You can browse results in Volumizer UI. You can receive results via RS232 or with web-service communication via Ethernet. You do not need to install a single SW, every setting can be changed from your browser.

BeeVision dimensioners are equipped with remote access software. We can connect to your BeeVision and guide you through it.

With BeeVision API! All you need to do is to establish a web service connection to the BeeVision Dimensioner and request data and receive response. You can do this very quickly in any programming language. Our team is happy to provide you examples if you need. BeeVision devices may behave as a client and send results automatically to your database.

3DT170 : The Dimensioner
Here is what is delivered in the box with your 3DT170 BeeVision dimensioners:

> BeeVision Dimensioner
> Power Adapter
> Connection Bracket
You can mount it anywhere you like and calibrate the device within couple of seconds. Easiest dimensioner ever!
In 99% of the cases, single dimensioner is sufficient. An object with a reverse T shape might require two dimensioners to cover blind spots. If you would like to measure pallet size in addition to freight size, we suggest double 3DT170s. For further information, please refer to User Manual in Downloads page.

Mounting BeeVision is quite easy. There are 4 screw holes to mount it. We also provide a simple connection bracket that can be used to mount BeeVision dimensioners to industry standard sigma shape profiles.

Thanks to our patented 3D measurement technology, calibration is as simple as it can get. There is no need for other equipment or even a checker board. All you need to do is to first mount the device looking downwards to the measurement surface, connect it to a monitor or use your browser to control the device and then follow single click calibration method described in the User Manual. Go to Downloads page for further details.

Just once! You do not need to recalibrate unless you change the position of the BeeVision dimensioner.

YES! BeeVision dimensioners are designed to work together with scales. You can use RS232 connection to feed weight data from scale to dimensioner. There are bunch of features to fine-tune cooperation between scale and BeeVision.

Yes. BeeVision can directly print measurement-specific barcodes or labels if you connect a Zebra brand barcode printer via USB. For other barcode printers, please get in touch with us.

No, you can use BeeVision's web interface to calibrate or perform measurements, even remotely. If you would like to use a monitor, you can connect to HDMI output of BeeVision and you can control the device so as well.

Yes, just plug the USB cable of the scanner to the BeeVision and you are good to go. You can set a delay between barcode scan event and dimension measurement to provide the operator time for better handling.

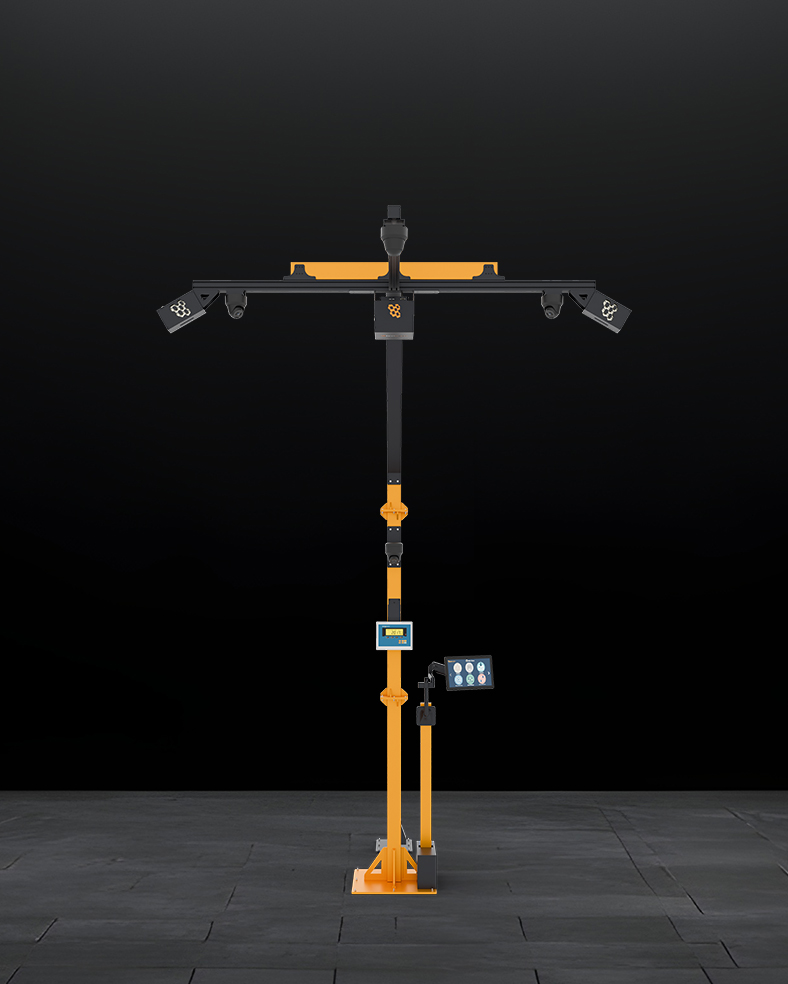

3DT180 : Static Dimensioning System
Here is what is delivered with your 3DT180 BeeVision dimensioners:

> BeeVision 3DT170 Dimensioner
> Mobile platform on wheels
> Industrial 12" touch screen monitor
> Integrated scale
> Handheld barcode scanner

The platform of 3DT180 is produced on-demand. It generally takes 3 weeks after the purchase order until the product is shipped.

Yes, absolutely! All you have to do is to mount the pole and you are good to go!

3DT190 : Dynamic Dimensioning System
Here is what is delivered with your BeeVision 3DT190 dynamic dimensioning system:

> Feed and measurement conveyors
> Integrated in-motion dimensioning sensors
> Integrated in-motion scale (checkweigher)
> Integrated in-motion imager barcode reader
> Panel-PC

BeeVision 3DT190 systems are produced on-demand. It generally takes 6-8 weeks after the purchase order until the product is shipped.

No. 3DT190 systems are delivered at a ready-to-use state. All you need to do is to plug and start measuring!

Yes. The 3DT190 dynamic dimensioning system is designed in a modular way and can be adapted to customer requirements.
