BeeVision 190XL

Dynamic Dimensioning System for Large Objects

DESIGNED FOR
LARGE ITEMS

Measure bulky items that cannot be fed into other automation systems

Explore in 3D

Interact with BeeVision 190 XL from every angle using our 3D model.

up to 530 pieces per hour with
an average of 100 cm length.

This comprehensive dimensioner offers weighing, barcode scanning and high-resolution image capture, providing the highest level of automation in warehouses for large products as long as 250cm that cannot be fed into sorting systems

0.7m/sec
Conveyor Speed
0.5cm
High Accuracy Dimensioning
50kg
Maximum Weight

components

Smart Conveyor System Smart Conveyor System

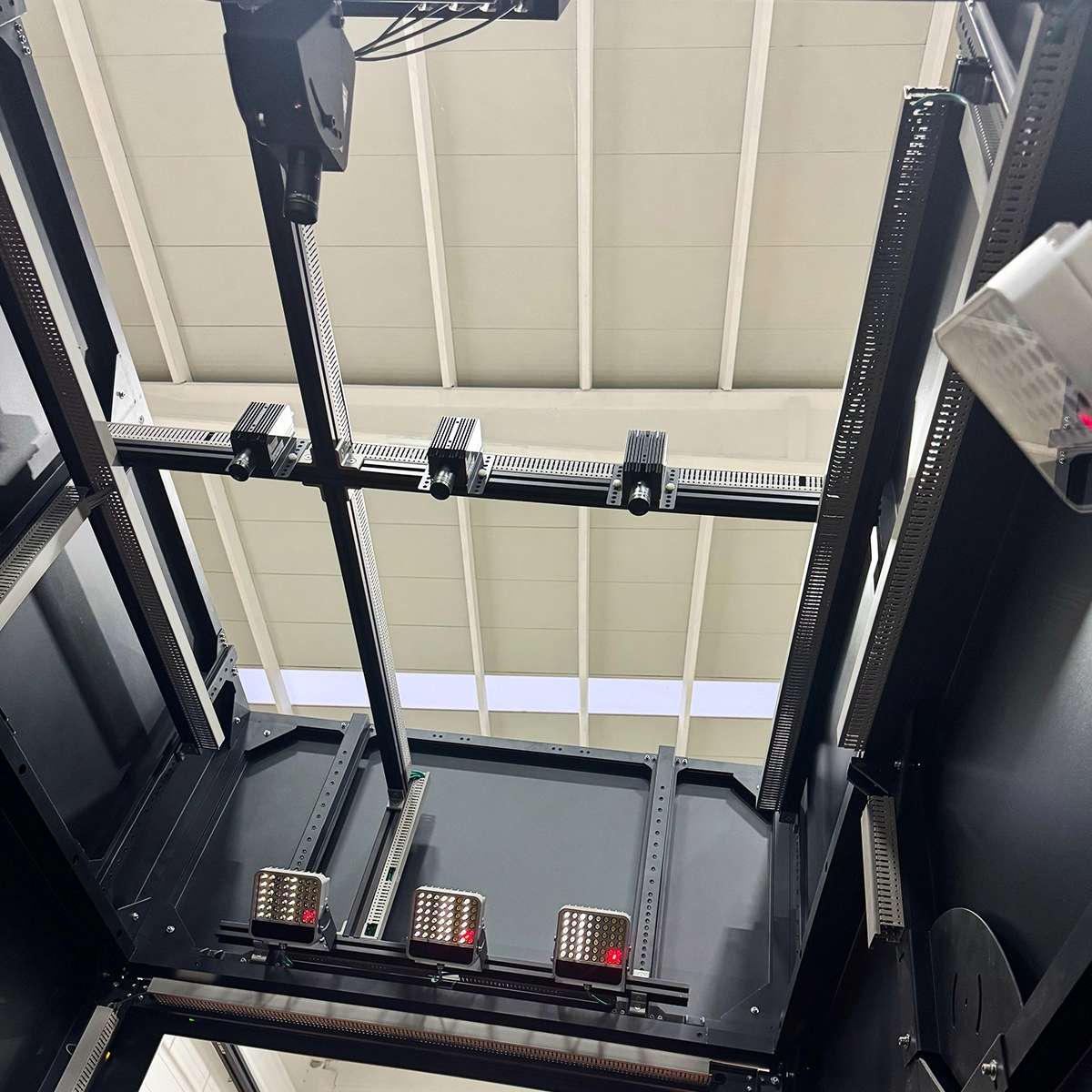

AI-Powered Measurement AI-Powered Measurement
User Interface User Interface

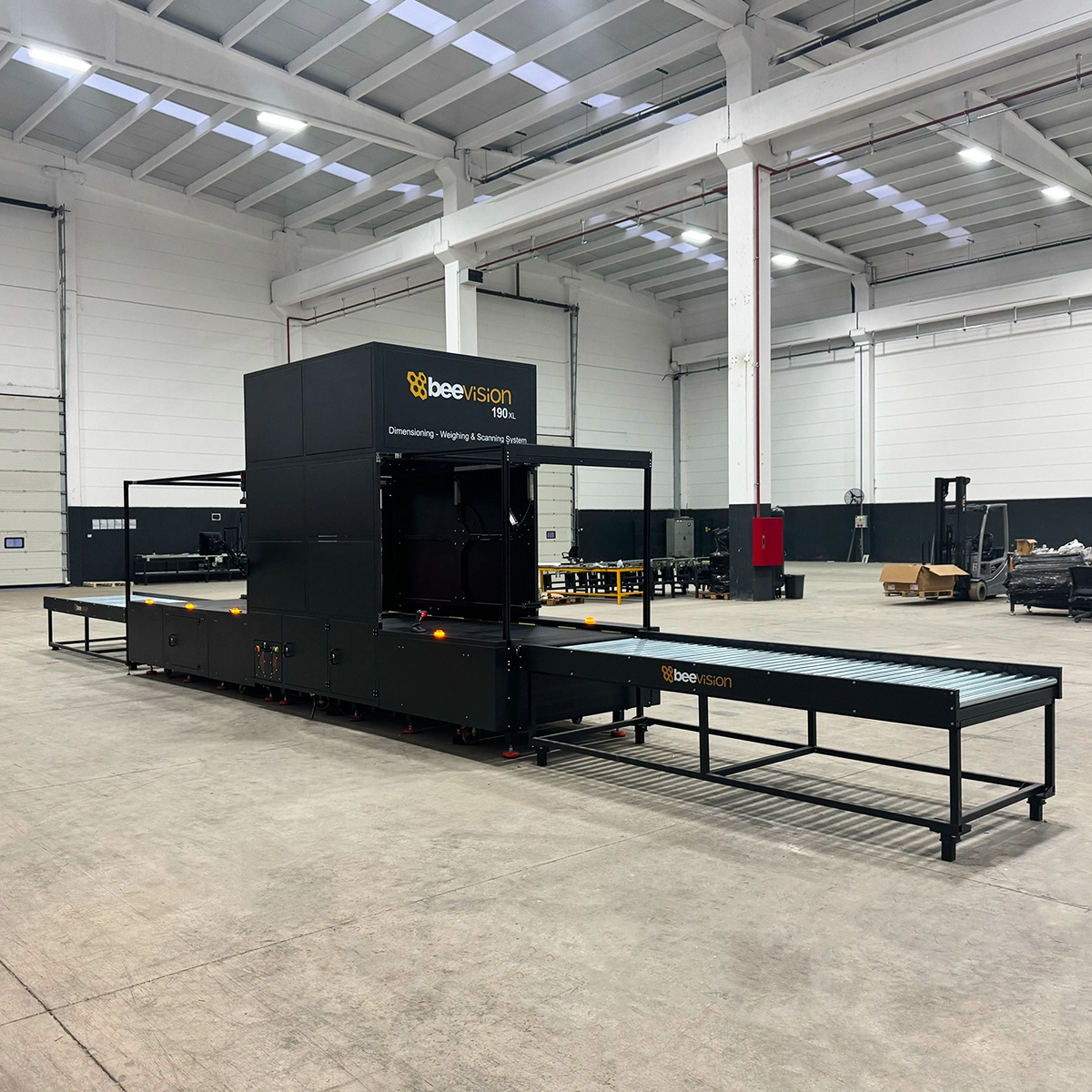

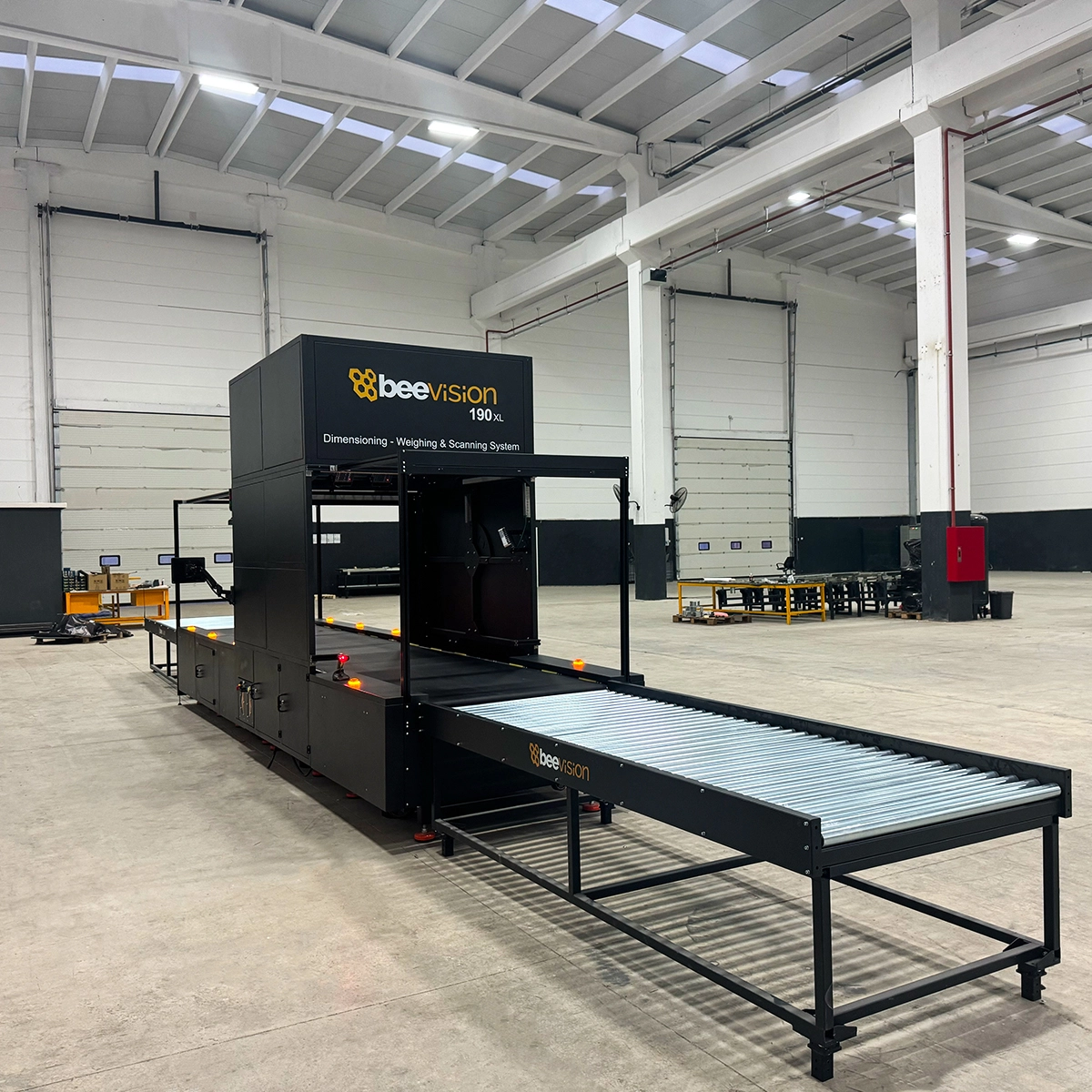

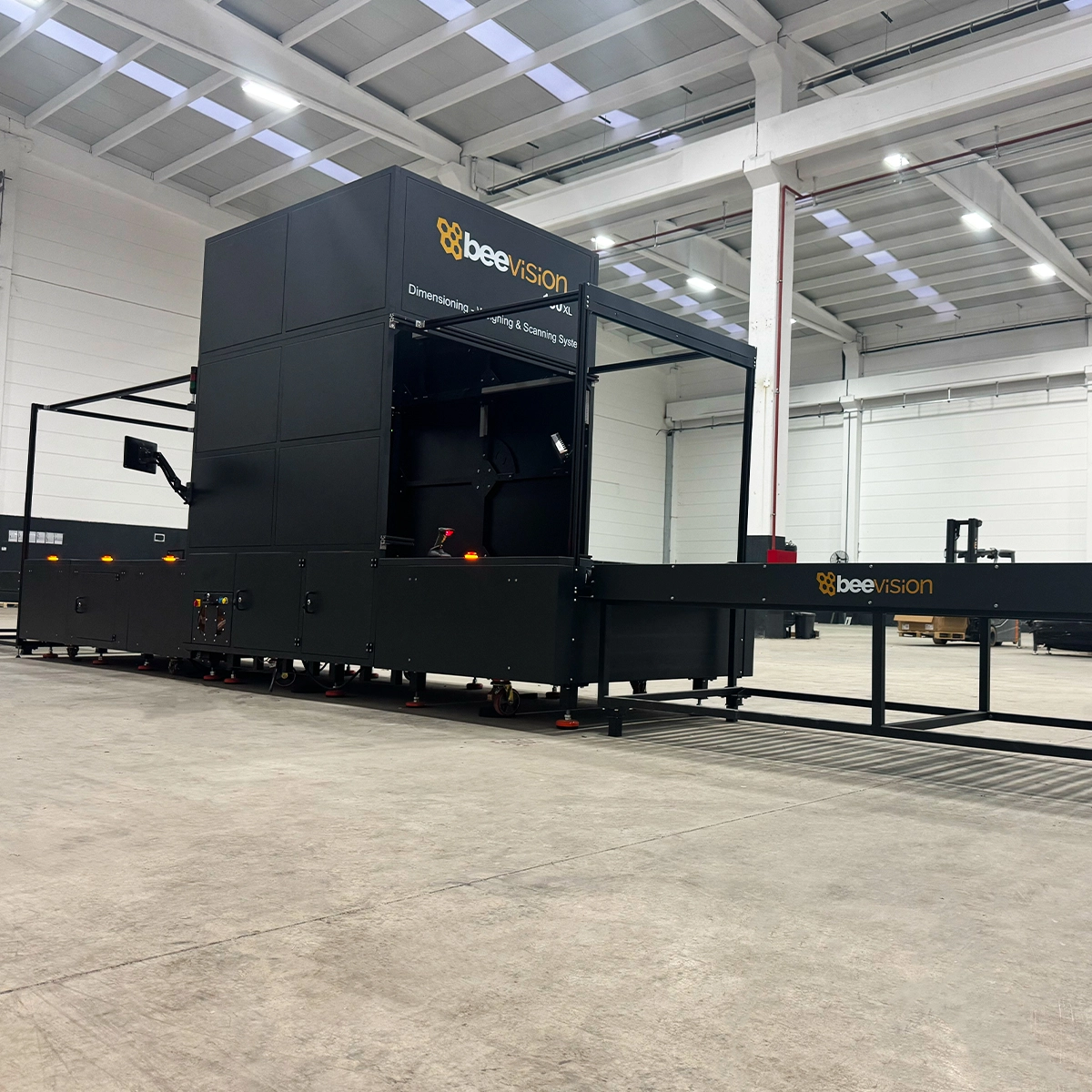

BeeVision 190XL DWS BeeVision 190XL DWS

technical specs

Measuring Capability Regular or Irregular, any color, any surface, non-transparent objects
Min. Measurable Object Dimensions (Typical)(L x W x H) 10cm x 10cm x 0.5cm
Max. Measurable Object Dimensions (Typical)(L x W x H) 250cm x 120cm x 120cm
System Throughput Up-to 530 pieces per hour with an average of 100cm object length
Measurement Accuracy 0.5cm
Maximum Conveyor Speed 0.7 m/sec
Scale Capacity 50 kg
Barcode Reading Optional Automatic Barcode Reading and Wireless Handheld 2D Barcode Scanner
Integration Interface Web Service API, TCP/IP Socket, File upload to FTP, SFTP or Samba
Data Output Bounding Box, Length, Width, Height, Real Volume, Weight, Barcode, Image (Optional)
Maximum Power Consumption 4kW
Product Dimensions (L x W x H) and Weight 700cm x 120cm x 238cm and 1970kg
Package Dimensions (L x W x H) and Weight 396cm x 211cm x 255cm and 2000kg (2 Packages)

downloads

brochure user manual software guide

frequently asked questions

General Questions

Just drop us an email to info@beevision.ai. Please tell us also minimum and maximum object size that you would like to measure, as well as the object type and the application type: static or dynamic.

We ship worldwide!

We accept bank transfer. Our bank account number is provided with offer.

BeeVision dimensioners offer you unprecendented flexibility. You can download measurement results to your PC as an Excel file. You can browse results in Volumizer UI. You can receive results via RS232 or with web-service communication via Ethernet. You do not need to install a single SW, every setting can be changed from your browser.
BeeVision 190XL : Dynamic Dimensioning System for Large Objects

The primary difference is size capacity. While the standard BeeVision 190 handles objects up to 100cm x 80cm x 60cm, the 190XL is specifically designed for much larger items - measuring objects up to 250cm x 120cm x 120cm. The 190XL is built for logistics operations that handle bulky items that would be too large for standard dimensioning systems, making it ideal for furniture, large appliances, oversized packages, and other irregular-shaped large objects.

The BeeVision 190XL can process up to 530 objects per hour with an average object length of 100cm. While this is lower than the standard 190 model's throughput, the tradeoff comes with significantly expanded measurement capacity. The system operates with a conveyor speed of up to 0.7 m/sec, optimized for the safe and accurate handling of larger, heavier items while still maintaining high operational efficiency for warehouses that deal with oversized merchandise.

The BeeVision 190XL uses the same advanced AI-powered measurement technology as other BeeVision dimensioners, but with an extended measurement field to accommodate objects up to 250cm in length. Its sophisticated imaging system can accurately capture dimensions of irregularly shaped objects regardless of their orientation on the conveyor. The system creates a precise 3D model of each item, capturing the true dimensions even of non-rectangular objects like tubes, cylinders, or oddly-shaped packages that traditionally challenge dimensioning systems.

The BeeVision 190XL is ideal for logistics companies, distribution centers, and warehouses that regularly handle large-scale items such as furniture, large appliances, sporting equipment, automotive parts, or industrial components. It's particularly valuable for e-commerce fulfillment centers that ship oversized products that cannot be processed through standard automation systems. Companies that need accurate dimensional data for optimizing shipping costs, planning warehouse space utilization, and improving load planning for large items will find the 190XL especially beneficial, as it brings automated dimensioning capability to product categories that previously required manual measurement.

Yes, the BeeVision software supports group measurement and cubic measurement operations. The Group Measurement function is designed to group sequential dimensioning tasks and send the dimensioning results to a specified network address via the Integration Menu > Server Sharing tab. Additionally, volume measurement data is saved locally on the device as an XML file (readable by Microsoft Excel), facilitating warehouse automation processes.

Yes, by enabling the "Enter results manually" option in the Measurement Settings menu of the BeeVision dimensioning device, you can register products of any size. This feature ensures accurate dimensioning and flexible data entry.

Yes, any scale supporting RS232 communication can be used with the BeeVision dimensioning device. However, for accurate volume measurement and optimal performance, we recommend using scales specified by BeeVision. For further details, please contact our Technical Support Team.

Yes, the BeeVision dimensioning device is compatible with barcode scanners that support USB port connections, enhancing the flexibility of your warehouse automation processes.

Yes, you can access past dimensioning results through the WebUI on the BeeVision dimensioning device. Additionally, all volume measurement data can be retrieved via WebService. For detailed instructions to support warehouse automation, please refer to our documentation.

No, the BeeVision dimensioning device retains unsent volume measurement data in its memory and periodically attempts to send it to the remote server. This process continues until a successful response is received, ensuring accurate dimensioning and data security.

BeeVision 190 DWS XL: Advanced Oversized Parcel Dimensioning System

BeeVision 190 DWS XL is an AI-powered integrated dimensioning, weighing, barcode reading, and image capture system specifically designed for oversized and bulky parcels that cannot be handled by standard DWS systems. It extends the capabilities of the BeeVision 190 DWS family by enabling reliable and automated measurement of large-format shipments commonly encountered in modern logistics operations.

Thanks to its reinforced mechanical structure and extended measurement volume, BeeVision 190 DWS XL allows continuous, non-stop processing of large and heavy parcels directly on the conveyor. Even at high throughput environments, the system maintains stable performance and high accuracy, eliminating the need for manual measurement or separate oversized handling lines.

The system delivers precise dimensioning with up to 0.5 cm accuracy, reliably detecting both regular and irregular-shaped objects across various colors and non-transparent surfaces. BeeVision 190 DWS XL is ideal for logistics operations where parcel diversity goes beyond standard limits, including furniture, large boxes, industrial goods, and special e-commerce shipments.

With its MID-certified weighing and dimensioning capabilities, all measurement results are legally valid for commercial use, making the system especially suitable for logistics providers, courier companies, and e-commerce operations that apply dimensional weight-based pricing for oversized parcels.

High-performance 1D and 2D barcode reading ensures fast and accurate identification, while the optional image capture module records visual proof of each shipment. This provides strong operational transparency and supports dispute resolution processes. Output data includes bounding box coordinates, length–width–height dimensions, calculated volume, actual weight, and barcode information.

Typical application areas include:

  • Oversized parcel handling lines
  • E-commerce fulfillment centers with large-item shipments
  • Distribution centers processing bulky goods
  • Courier and freight operations
  • Automated warehouse systems requiring XL parcel compatibility

Unlike manual or semi-automatic oversized measurement processes, BeeVision 190 DWS XL operates fully automatically on the conveyor, significantly reducing labor costs, human error, and processing time. Most installations achieve a rapid return on investment (ROI) by eliminating manual handling and increasing operational throughput.

From an integration perspective, BeeVision 190 DWS XL offers powerful connectivity options, including Web Service API, TCP/IP Socket, FTP/SFTP/Samba, and other output methods. It integrates seamlessly with existing Warehouse Management Systems (WMS) and supports RS232 scales and USB barcode readers. The intuitive web-based interface allows easy configuration, monitoring, and reporting.

BeeVision 190 DWS XL is a future-ready, high-performance solution that enables logistics operations to handle large and non-standard parcels with the same speed, accuracy, and automation level as standard shipments.
