BeeVision 100 Series

High-Speed Modular Conveyors

SEAMLESS FLOW
UNINTERRUPTED OPERATIONS

Build your customized line and increase your warehouse efficiency thanks to modular conveyors with seamless integration.

extend and shape your sortation route
according to your warehouse layout

straight and corner conveyor types ensure perfect adaptability to the size,
shape and scale of operations of your warehouse.

UNLIMITED
CONVEYOR COUNT
FOR EACH SYSTEM
60kg
WEIGHT CAPACITY
FOR EACH PARCEL
2m/s
OUTSTANDING
MAX. SPEED

highlights

PVC High-Endurant Friction Belt

PVC High-Endurant Friction Belt

The high quality belt made of PVC material provides the advantage of not requiring maintenance or repair for years.

Belt Path Stabilizer

Belt Path Stabilizer

In-house developed anti-deviation system that prevents the formation of the belt from deteriorating due to use.

Double Emergency Stop

Double Emergency Stop

In addition to high-level occupational safety measures, there are two emergency stop buttons on each module.

and more features

Frequency inverter driven motor

Advanced motor technology with frequency inverter control for precise speed regulation and energy efficiency.

Easy belt-tension adjustment

Simple and quick belt tension adjustment system for optimal performance and minimal maintenance downtime.

60kg capacity per square meter

High load capacity design allowing up to 60kg per square meter for handling heavy parcels efficiently.

Variable module length

Flexible design with variable overall length up to 5 meters per module for customized conveyor solutions.

components

PVC Belt System PVC Belt System
Belt Stabilizer Belt Stabilizer
Safety Systems Safety Systems
Control Unit Control Unit

technical specs

Area of Use Feed, Output, Sortation
Belt Material PVC High-Endurant Friction Belt
Maximum Speed 2 m/s
Weight Capacity (Per Square Meter) 60kg/m²
Motor Type Frequency Inverter Driven Motor
Belt Dimensions (W x H x L) 110 cm x 80cm x 80cm
Maximum Module Length Up-to 5 meters per module
Conveyor Count Unlimited per system
Safety Features Double emergency stop per module
Belt Stabilization Anti-deviation system
Belt Tension Adjustment Easy manual adjustment
Operating Temperature -10°C to +40°C
Power Supply 230VAC, 1.5kW

downloads

Download Brochure

frequently asked questions

General Questions

Just drop us an email to info@beevision.ai. Please tell us also minimum and maximum object size that you would like to measure, as well as the object type and the application type: static or dynamic.

We ship worldwide!

We accept bank transfer. Our bank account number is provided with offer.

BeeVision dimensioners offer you unprecendented flexibility. You can download measurement results to your PC as an Excel file. You can browse results in Volumizer UI. You can receive results via RS232 or with web-service communication via Ethernet. You do not need to install a single SW, every setting can be changed from your browser.

BeeVision dimensioners are equipped with remote access software. We can connect to your BeeVision and guide you through it.

With BeeVision API! All you need to do is to establish a web service connection to the BeeVision Dimensioner and request data and receive response. You can do this very quickly in any programming language. Our team is happy to provide you examples if you need. BeeVision devices may behave as a client and send results automatically to your database.

The return on investment (ROI) for BeeVision 100 varies depending on your processing volume, current labor costs, and operational efficiency. Most of our customers achieve full ROI within 6 months. Transitioning to automated conveyor systems can significantly reduce labor costs, eliminate costs from operational errors, and increase overall productivity. We recommend contacting our sales team for a customized ROI analysis.

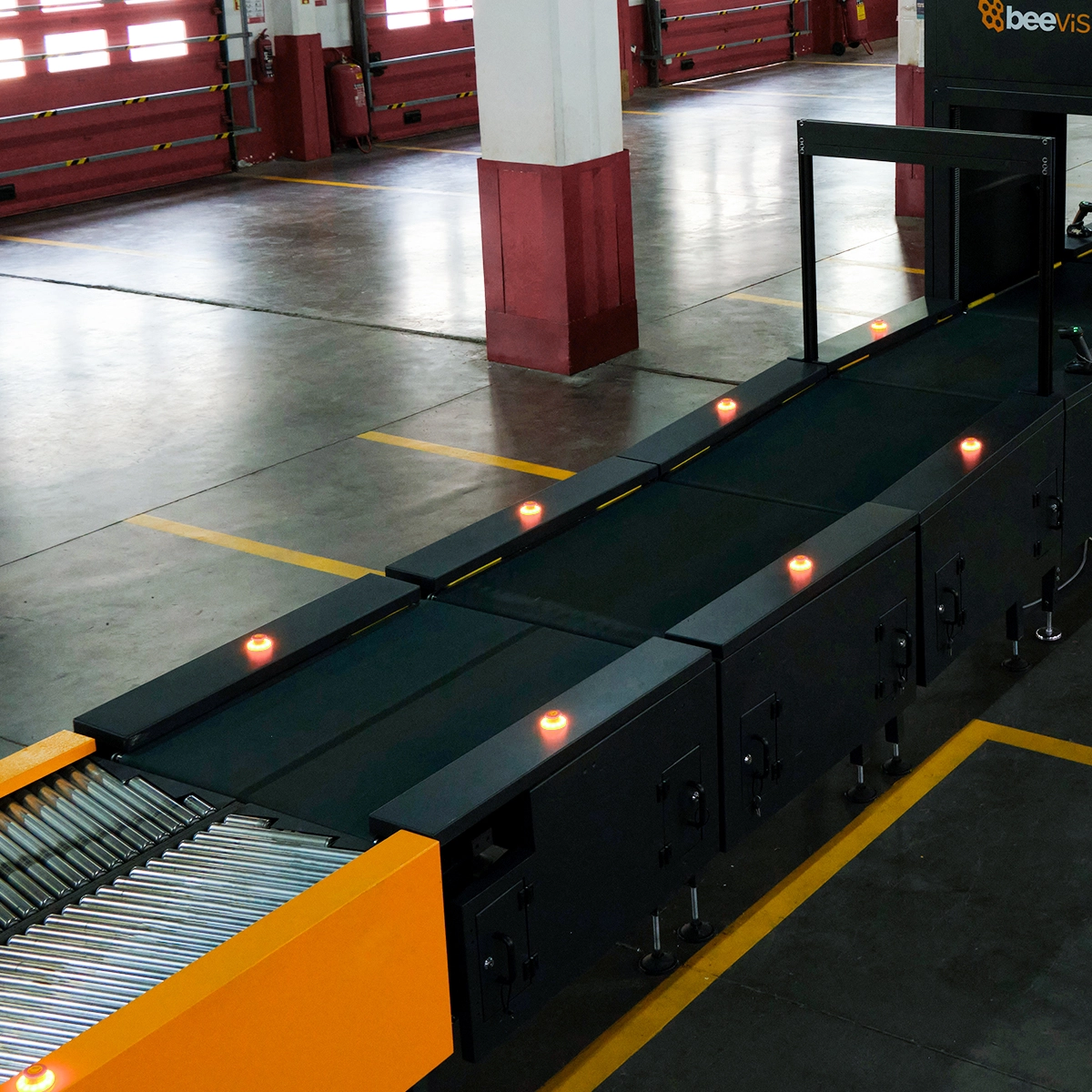

BeeVision 100 : Modular Conveyor System

The BeeVision 100 Modular Conveyor features a modular design that allows for easy customization and expansion. It includes high-speed operation capabilities, smooth belt movement, and compatibility with various sorting systems. The conveyor is designed to handle parcels up to 30kg and can be integrated with other BeeVision systems for a complete warehouse automation solution.

The BeeVision 100 Modular Conveyor is designed for seamless integration with existing warehouse systems. It can be connected to BeeVision dimensioners, barcode readers, and sorting systems.

The BeeVision 100 Modular Conveyor requires minimal maintenance due to its robust design. Regular cleaning and inspection of the belt and rollers are recommended. The modular design allows for easy replacement of components if needed. We provide comprehensive maintenance guides and our support team is available for any technical assistance.

The BeeVision 100 Modular Conveyor operates on 230VAC power supply with 1.5kW power consumption. Each module is designed to be energy-efficient, and the system includes power management features to optimize energy usage.

Yes, the BeeVision 100 Modular Conveyor is designed to handle various types of packages, including boxes, polybags, envelopes, and documents. The conveyor can accommodate items ranging from 15cm x 5cm x 0.5cm to 70cm x 50cm x 50cm, with a maximum weight capacity of 30kg per item. The belt surface and side guides can be customized to handle specific package types and prevent damage during transportation.
